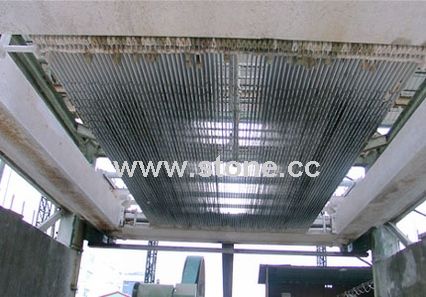

Marble Frame Saw

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1284435

• Place of Origin:

  China
• Frame Saw Blade(GangSaw) <BR>UNIT:Mm <BR><BR>For the precision cutting of natural stones, the gang saw blades of variable dimensions and capacities are serving all types of marbles and other material plants (except granite) for well shaped blocks.<BR>(A gang saw blade consists of two parts;The diamond segment and the steel strip.) <BR><BR>Block Length L1<BR>Max Segmented Length<BR>L4 With Of Diamond Segment<BR>T.Overall Depth Of segment X1 Depth Of DiamondSection X CoreDimensionF E <BR>2000 2000 4.6 5.0 7 5 180 3.0 <BR>2500 2500 4.6 5.0 7 5 180 3.0 <BR>2500 2500 5.0 7 5 180 3.5 <BR>3000 3000 4.6 5.0 7 5 180 3.0 <BR>3000 3000 5.0 7 5 180 3.5 <BR>3500 3500 5.0 7 5 180 3.5 <BR>4000 4000 5.0 7 5 180 3.5 <BR>3000 3000 5.0 7 5 180 3.5 <BR>3500 3500 5.0 7 5 180 3.5 <BR>4000 4000 5.0 7 5 180 3.5 <BR><BR><BR>Recommended Parameters Based on Material<BR>- Slow Moving Horizontal Gangsaw <BR>Length of Stroke, mm 360 400 500 600 <BR>Strokes/min 80 80 80 80 <BR>Blade velocity, m/s 0.96 1.07 1.33 1.60 <BR><BR>General Specifications <BR>Required powder per blade <BR>20-30 segments per blade 1.0-1.5kw <BR>30-45 segments per blade 1.5-2.0kw <BR>Down feed (cm/h) <BR>Marble 10-20 <BR>Limestone 12-25 <BR>Agglomerate 10-20 <BR>Amount of cooling water per blade l/min 7-8 <BR>Deflection <BR>Soft stone, mm 1.5-3.5 <BR>Hard stone, mm 1.5-3.5 <BR>Tension, kN (t) 80-90(8-9) <BR><BR><BR>Recommended Parameters Based on Material<BR>-- High Speed Horizontal Gangsaw <BR>Length of Stroke, mm 500 540 700 750 800 <BR>Strokes/min 120 120 120 120 120 <BR>Blade velocity, m/s 2.00 2.16 2.45 2.63 2.93 <BR><BR>General Specifications <BR>Required powder per blade <BR>20-30 segments per blade 1.5-2.2kw <BR>30-45 segments per blade 2.0-2.8kw <BR>Down feed (cm/h) <BR>Marble 15-35 <BR>Limestone 20-30 <BR>Agglomerate 25-35 <BR>Amount of cooling water per blade l/min 9-10 <BR>Deflection <BR>Soft stone, mm 1.8-4.0 <BR>Hard stone, mm 1.8-4.0 <BR>Tension, kN (t) 90-100(9-10)
